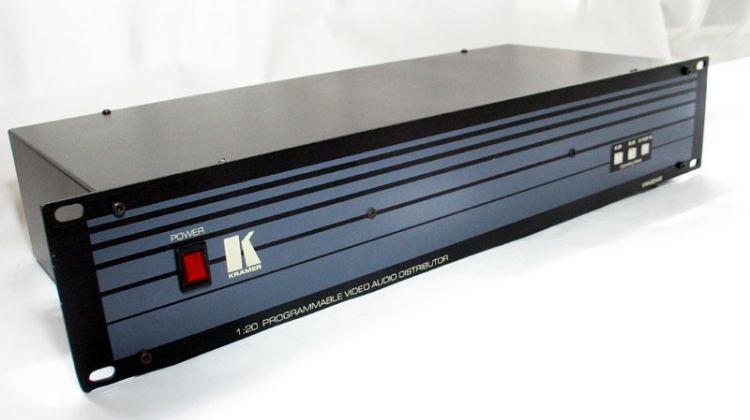

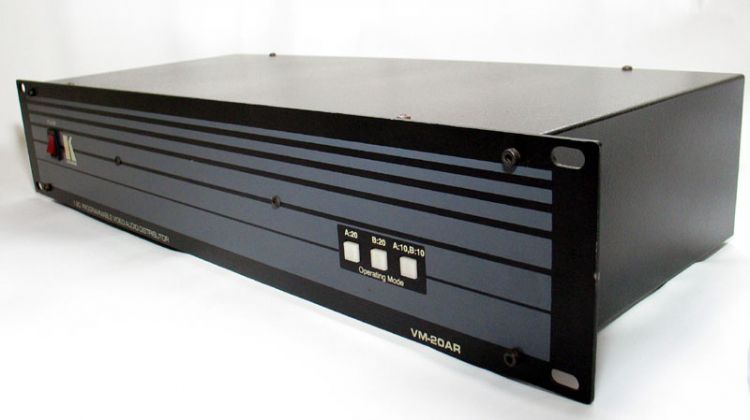

Kramer AV-20AR 1:20 programmable video audio distributor
Усилитель-распределитель аудио-видео сигналов, практически новый

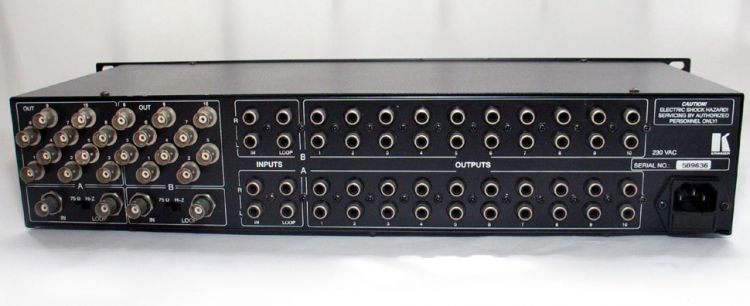

INPUTS: 2 Video looping, 1Vpp/75 W on BNCs with termination switch.
2 Audio-stereo 50 kW, looping on RCAs.
OUTPUTS: 20 (or 2x10) Composite Video 1 Vpp/75 W on BNCs.
20 (or 2x10) Audio-stereo 100 W, 1V nom. on RCAs.
VIDEO BANDWIDTH: 90 MHz -3dB.
AUDIO THD: Less than 0.1%.
AUDIO S/N RATIO: Better than 80 dB. VIDEO S/N RATIO: Better than
COUPLING: DC (video), AC audio. DIFF. PHASE: 0.25 Deg.
DIFF. GAIN: 0.56 %. MAX. VIDEO OUTPUT: 2.5 Vpp.
POWER SOURCE: 230VAC 50/60 Hz (115V U.S.A.) AUDIO BANDWIDTH: 30 kHz -1dB.
DIMENSIONS: 19 inch, 2U rack mountable. K-FACTOR: <0.05%.
В наличии имееися еще 2 штуки Panasonic AG-DA100 (дистрибьютеры на 10 выходов).
|
